SSL (7W-24W)

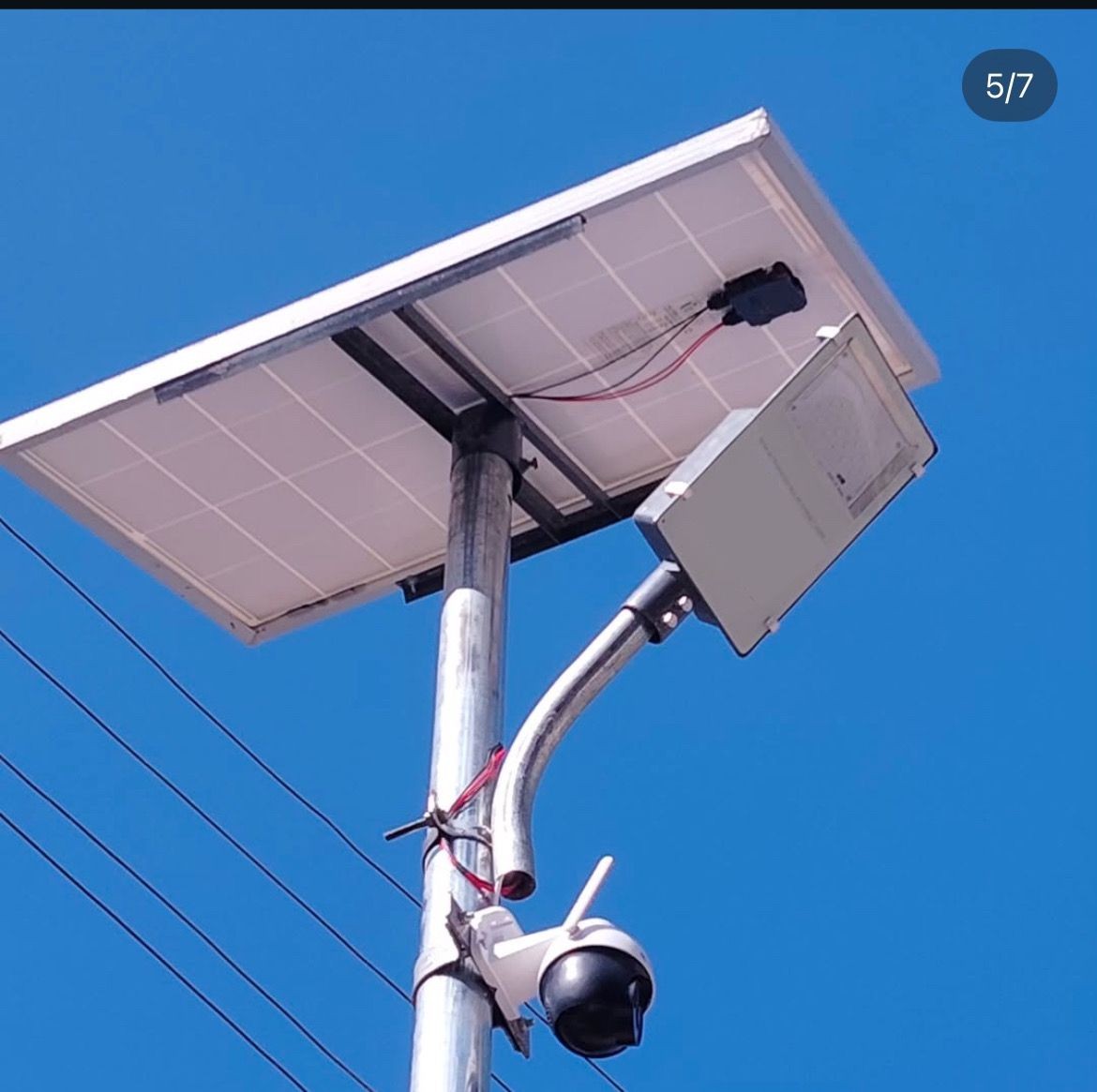

Solar street lights are beneficial for all, providing a cost-effective and eco-friendly way to illuminate streets. They are easy to install and offer bright lighting without adding to electricity expenses.

Our USP:

Battery provided in the set is lithium-ion.

Solar Module cell have high efficiency Multi Crystalline silicon cells / Mono Crystalline silicon cells.

GI Galvanised Octagonal Pole (5mtr+1mtr)

IP 65 classified

PRONTO RENEWABLES ENERGY PVT LTD

PRONTO SOLAR STREET LIGHT   - SPECIFICATIONS
S.No.Street Light7W9W12W18W24W
1Solar Module Rating (Wp)404075100120
2Solar Module Cell TypeHigh efficiency Multi Crystalline silicon cells / Mono Crystalline silicon cells
3Battery Voltage (LiFePo4)12V12V12V12V12V
4BATTERY Capacity 40Ah40Ah75Ah100Ah120Ah
5Charging Efficiency<96%
6LED Light Operating Voltage(11-16)V
7Charge Controller typePWMPWMPWMPWMPWM
8Driver Efficiency90.00%91.60%90.80%90.20%90.20%
9Lumen Efficiency/Watt>120 Lumen/W
10PoleGI Galvanised Octagonal Pole (5mtr+1mtr)

AINDICATIONS
1ChargingGreen LED Glow
2Battery LOWRED LED Glow

BPROTECTIONS
1Overcharge Provided
2Deep Discharge / Battery Reverse Provided
3Load Open & ShortProvided
4Reverse Current Flow Provided
5Open and Short CircuitProvided

MISCELLANEOUS
1IP ClassIP65
2Humidity95%
3Power Factor1
4Warrenty5years

NOTE:- DUE TO CONTINUE IMPROVEMENT IN PRODUCT , DESIGN MAY BE CHANGE.
