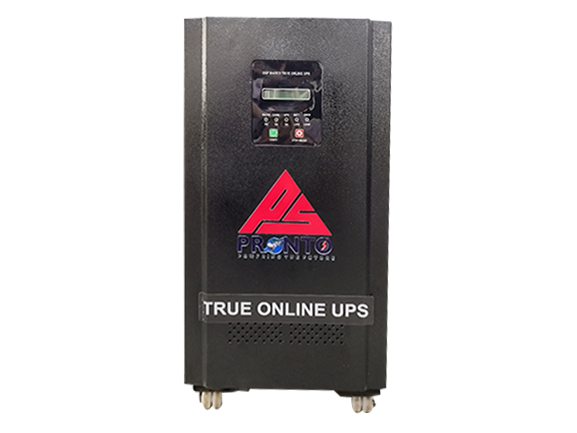

3P-3P OLU(5KVA-120KVA)
Our USP
- Pure Sine Wave Output
- Bypass Facility
- SCR/IGBT (PFC) Based Charger
- User Configurable Parameter
- Inverter Isolation Transformer
PRONTO RENEWABLES ENERGY PVT LTD | ||||||||||||
| PRONTO ONLINE UPS (3P-3P) - SPECIFICATIONS | ||||||||||||
| Models | SUPREME TT | |||||||||||
| Ratings | 5 KVA | 10 KVA | 15 KVA | 20 KVA | 25 KVA | 30 KVA | 40 KVA | 50 KVA | 60 KVA | 80 KVA | 120 KVA | |
| 1 | Operating DC Voltage | 324V - 384V | 360V - 384V | |||||||||
| 2 | No. Of Batteries | 27 - 32 | 30 - 32 | |||||||||
| A | MAINS MODE | |||||||||||
| 1 | No. of Phase | 3 Phase - 4 Wire R, Y, B, N | ||||||||||
| 2 | Voltage Range | 340V - 480V AC | ||||||||||
| 3 | Input Power Factor | 0.8 | ||||||||||
| 4 | Input THD | Less than 3% | ||||||||||
| 5 | Frequency Range | 47 - 53 Hz | ||||||||||
| B | INVERTER MODE | |||||||||||
| 1 | Switching Power Device | IGBT MODULES | ||||||||||
| 2 | Control | DSP Based PWM | ||||||||||
| 3 | Output Voltage | 230V AC +/- 1% | ||||||||||
| 4 | Phase | 1 Phase - 3 wire P, N, E | ||||||||||
| 5 | Output Waveform | Pure Sine Wave | ||||||||||
| 6 | Frequency | 50 Hz (Free running) | ||||||||||
| 7 | Changeover Time | Zero second | ||||||||||
| 8 | Rated Output Power Factor | 0.8 | ||||||||||
| 9 | Load Capacity | 100 % Continuous | ||||||||||
| 10 | Overload | 110 % for 20 Second, 150% Instant trip | ||||||||||
| 11 | THD | Less than 2% On linear load and Less than 5% on non linear laod | ||||||||||
| 12 | Transient Response | On 100% step laod change output stays within 5% and recovers within half cycle | ||||||||||
| 13 | Crest Factor | 3 : 1 | ||||||||||
| 14 | Switch | UPS START, STOP/RESET | ||||||||||
| 15 | LCD Display Parameters | Input Voltage, Output Voltage, Output Frequency, Output Current, Batttery Voltage, Charging Current | ||||||||||
| 16 | LED Indiaction | Mains ON, Charging ON, UPS ON. Low Batttery, Overload | ||||||||||
| 17 | Alarm | Batterty Low, Overlaod, Charger ON | ||||||||||
| 18 | Protection | Overload, Short Circuit, O/V, Mains Surge,U/V and O/V Protection | ||||||||||
| 19 | Bypass | Manual Bypass, Static Bypass (Optional) | ||||||||||
| 20 | Operating Temp | 0-50°C | ||||||||||
| 21 | Operating Humidity (RH Value) | Less than 95 | ||||||||||
| 22 | Protection Class | IP 20 | ||||||||||
| 23 | Low Cut Off | 10.5V/Batt.+/-2% | ||||||||||
| 24 | Battery Low Buzzer | 10.75V/ Batt. +/-2% | ||||||||||
| 25 | Low Cut off Recovery | 12V/ Batt. +/-2% | ||||||||||
| 26 | Charging Current | 10% of Battery AH | ||||||||||
| 27 | Communication | RS485 (Optional) | ||||||||||
| C | Dimensions (In mm) | 5 KVA | 10 KVA | 15 KVA | 20 KVA | 25 KVA | 30 KVA | 40 KVA | 50 KVA | 60 KVA | 80 KVA | 120 KVA |
| W×D×H | 370×725×790 | 470×810×900 | 470×1090×900 | 570×1230×920 | ||||||||
| Note:The specifications & Design are subject to change due to continuous improvements. | ||||||||||||
