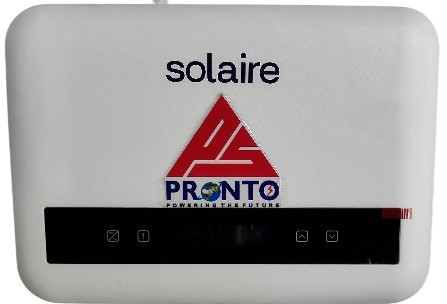

3KVA, On Grid Inverter

Our USP:

Superior Performance
In-built global MPP scan for higher yield efficiency
Assured Safety & Reliability
User Friendly Monitoring
Superb Adaptability

PRONTO RENEWABLES ENERGY PVT LTD

PRONTO ON GRID INVERTER VAYU SERIES - SPECIFICATIONS
INVERTER RATING (KVA)3KVA

ADC Input
1Max. PV array input power [Wp]6000
2Max. PV input voltage [V]550
3Startup voltage [V]50
4Nominal input voltage [V]360
5MPP tracker voltage range [V]40~550
6No. of MPP trackers / Strings per MPP tracker1
7Max. PV input current [A]16A
8Isc PV Array Short Circuit current [A]22A

BAC OUTPUT
1Rated AC output power [W]3000
2Rated AC output current [A]13.1
3Max. AC output apparent power [VA]3300
4Max. AC output current [A]15
5Nominal AC voltage/AC voltage range [V]**220/230/240, 90~290
6Nominal AC frequency/AC frequency range [Hz]**50/60±5
7Power Factor range0.8 leading ~ 0.8 lagging
8THDi (Rated power) [%]<3

BSYSTEM DATA
1Max. efficiency [%]98
2Euro. efficiency [%]97
3Standby consumption [W] @Night<1
4Ingress protectionIP66
5Protection classClass I
6Over voltage categoryII (DC), III(AC)
7Max. operation altitude [m]<4000
8Humidity [%]0~100
9Typical noise emission [dB]25
10Dimensions (W×H×D) [mm]290×206×120
11Weight [kg]5.5
12Cooling conceptNatural cooling
13Communication interfacesUSB/RS485/DRM, Optional: Meter/CT
14Optional monitoring donglePocket WiFi/LAN/4G
15Display2  × LED + LCD (16 × 2) / APP

CPROTECTION
1Over/under voltage protectionYes
2DC isolation protectionYes
3Monitoring ground fault protectionYes
4Grid monitoringYes
5DC injection monitoringYes
6Back feed current monitoringYes
7Residual current detectionYes
8Anti-islanding protectionYes
9Over temperature protectionYes
10SPD (DC/AC)Type II / Type II (Optional)
11Arc-fault circuit interrupter (AFCIOptional
12AC auxiliary power supply (APS)Optional
13DC SwitchOptional

DSTANDARD
1SafetyEN/IEC62109-1/2
2EMCEN61000-6-1/2/3/4; EN61000-3-2/3/11/12
3CertificationIEC61727, EN50549, G98/G99, AS 4777.2, VDE4105, CEI 0-21, VFR

Note:
* Not included in the package. Please purchase additionally.
**The AC voltage and the frequency range may vary from different country codes
The specifications & Design are subject to change due to continuous improvements.
