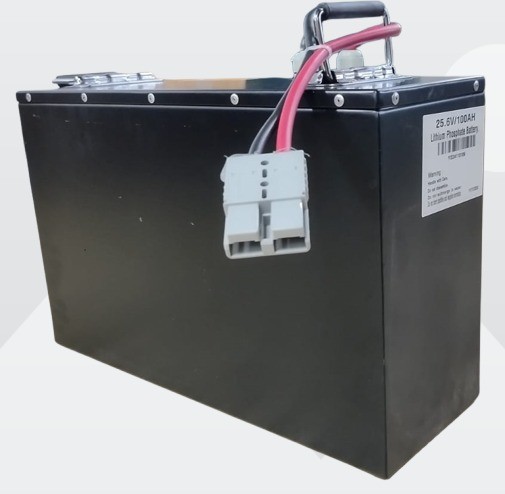

ESS 25.6V/ 100AH
| Nominal Voltage (V) | 25.6V |
| Capacity in Ah | 100Ah |
| Warranty | 5 Years |
| Certificates | ISO9001, ISO14001, IEC, ROHS |
| Battery Pack Energy Storage | 2.56kWh |
| ||
| S.No | Description | Specifications |
| 1 | Product Name | 25.6V 100Ah LifePO4 Battery Pack |
| 2 | Application | Inverter/ Solar/Online UPS |
| 3 | Chemistry | Lithium Ferro Phosphate (LifePO4) |
| 4 | Capacity | 100Ah |
| 5 | Warrenty | 5 Years |
| 6 | Certificates | ISO9001 |
| 7 | Certificates | ISO14001 |
| 8 | Certificates | IEC |
| 9 | Certificates | ROHS |
| 10 | Battery Pack Energy Storage | 2.56kWh |
| 11 | Nominal Voltage (V) | 25.6V |
| 12 | Capacity in Ah | 100Ah |
| 13 | Prefered Battery ElectroChemistry (NMC/LFP) | LFP Prismatic |
| 14 | Operating Temperature During Charge | -20 to +55 degree C |
| 15 | Operating Temperature During Discharge | -20 to +60 degree C |
| 16 | Connector Type | Thimble |
| 17 | Battery Enclosure type (ABS/ Metal/FRP soft Pack) | Metal |
| 18 | Dimensions / Size LxBxH (in mm) for 1 pack | L-480mm * W-180MM * H-330MM |
| 19 | Weight | 27.5kg +/- 2kg |
| 20 | C rating(Charging/Discharging) | 1C/2C |
| 21 | Continuous Discharge current (A) | 100A |
| 22 | No. of Life Cycle (Charge/Discharge) | 4000+ |
| 23 | Communication (CAN/RS 232/RS 485) | on demand |
| 24 | SoC Indicator/Display (Yes/No) | Yes |
| 25 | Charging Current (A) | 50Amp |
| 26 | Battery low Cut Off | 22V |
| 27 | Battery HIGH Cut-off Voltage | 29V |
| 28 | Cooling Type | Air |
| 29 | Cell Types | Prismatic 100Ah |
| 30 | Cell Configuration | 8s1p |
| 31 | Application | Power Backup Solution |
| 32 | BMS (Battery Management System) | BMS |
| NOTE:- DUE TO CONTINUE IMPROVEMENT IN PRODUCT , DESIGN MAY BE CHANGE. | ||
